High-quality metallized sapphire windows with AuSn soldering, designed for hermetic sealing in medical endoscopes and infrared optical systems.

AuSn Solderable Sapphire Windows for Endoscopes | RAY-Photonics

Products

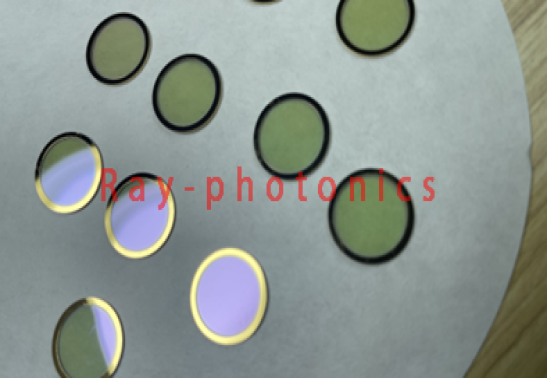

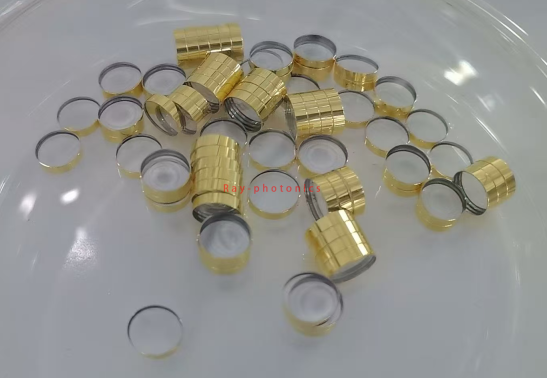

Our AuSn solderable sapphire windows are widely used in medical endoscopes, infrared imaging, and hermetic optical packaging. The AuSn metallization ensures strong bonding with stainless steel housings, making them ideal for rigid endoscopes, surgical devices, and other high-reliability optical systems.


Material: optical sapphire windows,Quartz substrate,Laser crystal(LBO,YvO4,YAG)
Diameter tolerance: +0, -0.1mm
Thickness tolerance: +/-0.05mm
Clear aperture: 90%
Surface quality: 60-40 scratches and digs
Surface accuracy: 2 lambdas per 25.4mm @ 632.8nm
Parallelism: < 3 minutes
Coating band range: 400- 25000nm,AR coating and   IR  coating  (Ion Assisted Coating)
Metalizing: Chrome, Titanium,Nickel, and Gold(Au-Film ),Pt-----Magnetron sputtering  method
