Angle polished fiber

Angle polished fiber

Angle polished fiber-Side-emitting fiber lens

Angle polished fiber

Products

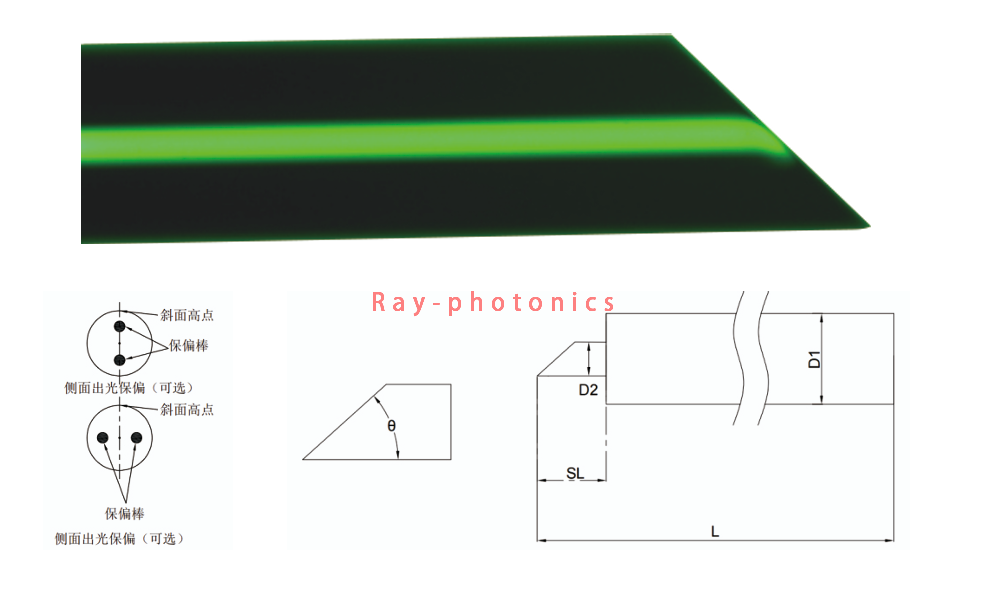

No.Parameter NameSpecification   RangeTypical ValueTolerance
1Fiber TypeSM/MM/PMSM/MM/PMN/A
2Fiber Length (L)Customer specifiedPM: 1m, SME28E: 1.5mN/A
3Fiber Outer Diameter   (D1)165μm–900μm165μm / 250μm / 320μmN/A
4Bare Fiber Outer   Diameter (D2)80μm–600μm80μm / 125μm / 220μmN/A
5Angle of Oblique   Surface (θ)30°–50°45° / 42°Typical: ±1°
6Stripping Length (SL)10mm / customized10mm±0.5mm
7Connector Key   Orientation (for PM fiber)Aligned with KEY /   customizedN/A±5°
8Oblique Surface Key   Orientation (for PM fiber)High-low point   aligned / lowest point alignedN/A±5°
9Connector (Optional)FC/PC; FC/APC /   customizedFC/APCN/A
10Protective Tube   (Optional)900μm various color   tubes900μm white tubeN/A
11Coating (Optional)Coating thickness:   3–4μmN/AN/A


Characteristics:

They are mainly divided into two categories: one type features an angled surface between 6° and 10.9°, which is used to prevent reflected light from the fiber surface from returning along the optical path and causing interference or damage; the other type has a steeper angled surface between 40° and 50°, or even greater. This type of angled fiber lens can alter the optical path or induce large-angle total internal reflection, and can also enlarge the light-receiving area of the fiber, allowing more light to enter the fiber.

Applications:
These lenses are used in fields such as fiber lasers, fiber-optic communications, traditional optics, and fiber-optic sensing.
