Angled Ball Lensed Fiber

Angled Ball Lensed Fiber

Angled Ball Lensed Fiber

Products

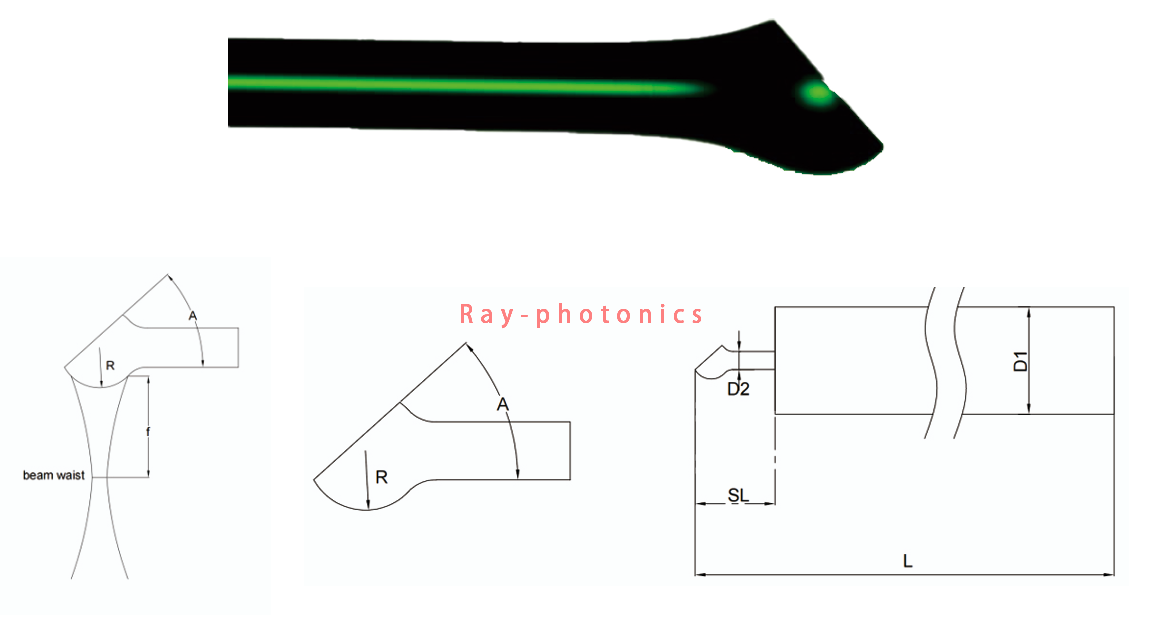

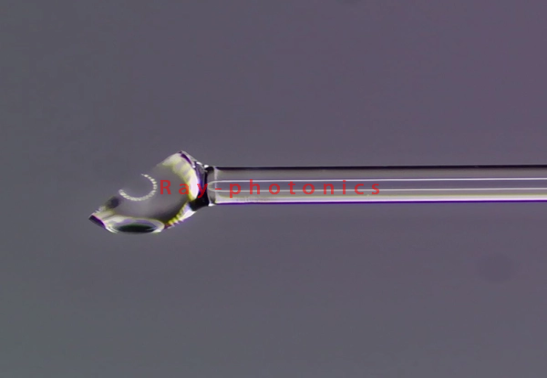

image.png     image.png


Parameters

Unit

Values

Typical Values

Tolerances

Nominal Beam Waist Diameter(BW)

Um

120-300

160,250,300

±10

Polish Angle

Deg

39

39

±1

Surface Quality (S-D) at   S1(mil-prf-13830)

--

20-10

10-5

NA

Wavefront Distortion at  S1

--

≤λ/5/@632.8nm

NA

NA

Polish Accuracy(Relative to Centre of   Ball Lens)

um

±10

±5

NA

Fiber Type

--

SM

NA

NA

Stripping  Length

mm

5±1,customized

5

±1

Coating   Diameter

um

250-400

250,400

NA

Cladding    Diameter

um

125-250

124,250

NA
